[7kW] EZ Charge Pro | Type 2 Portable EV Charger | 6A-32A Adjustable | AU Plug
[7kW] EZ Charge Pro | Type 2 Portable EV Charger | 6A-32A Adjustable | AU Plug
- Free Shipping
Couldn't load pickup availability
Overview

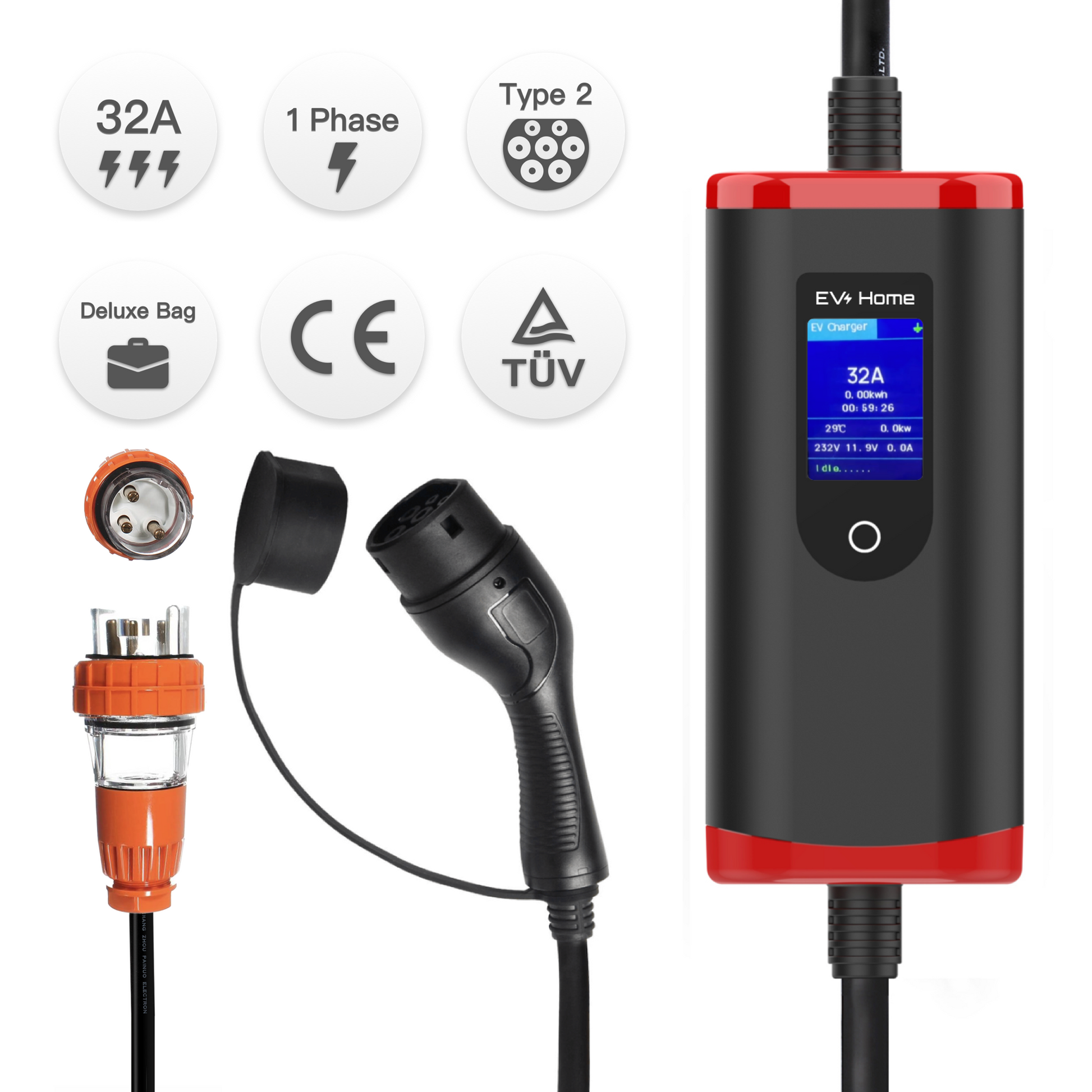

- Type 2 Portable EV Charger – Charge your electric vehicle via an Australian industrial wall socket

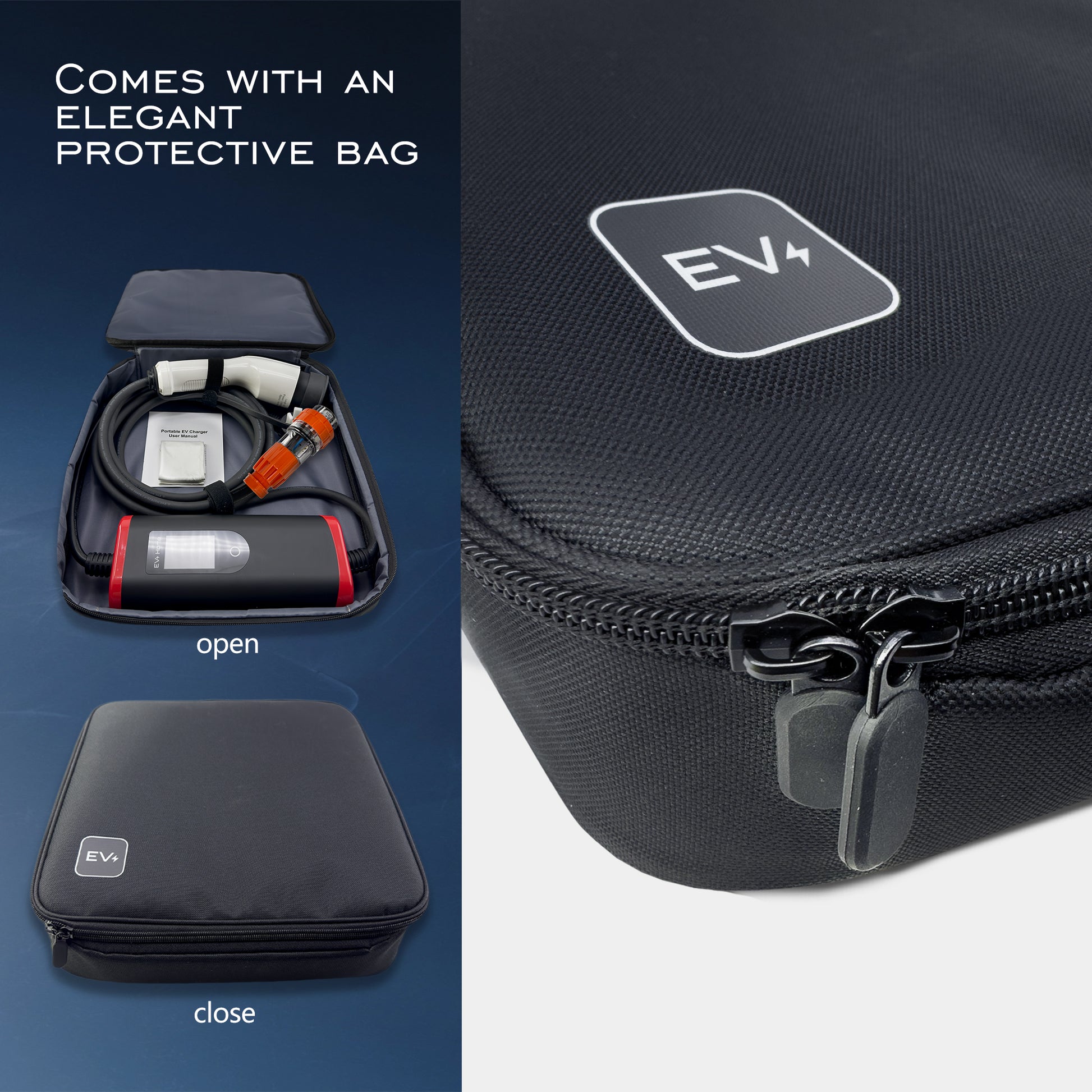

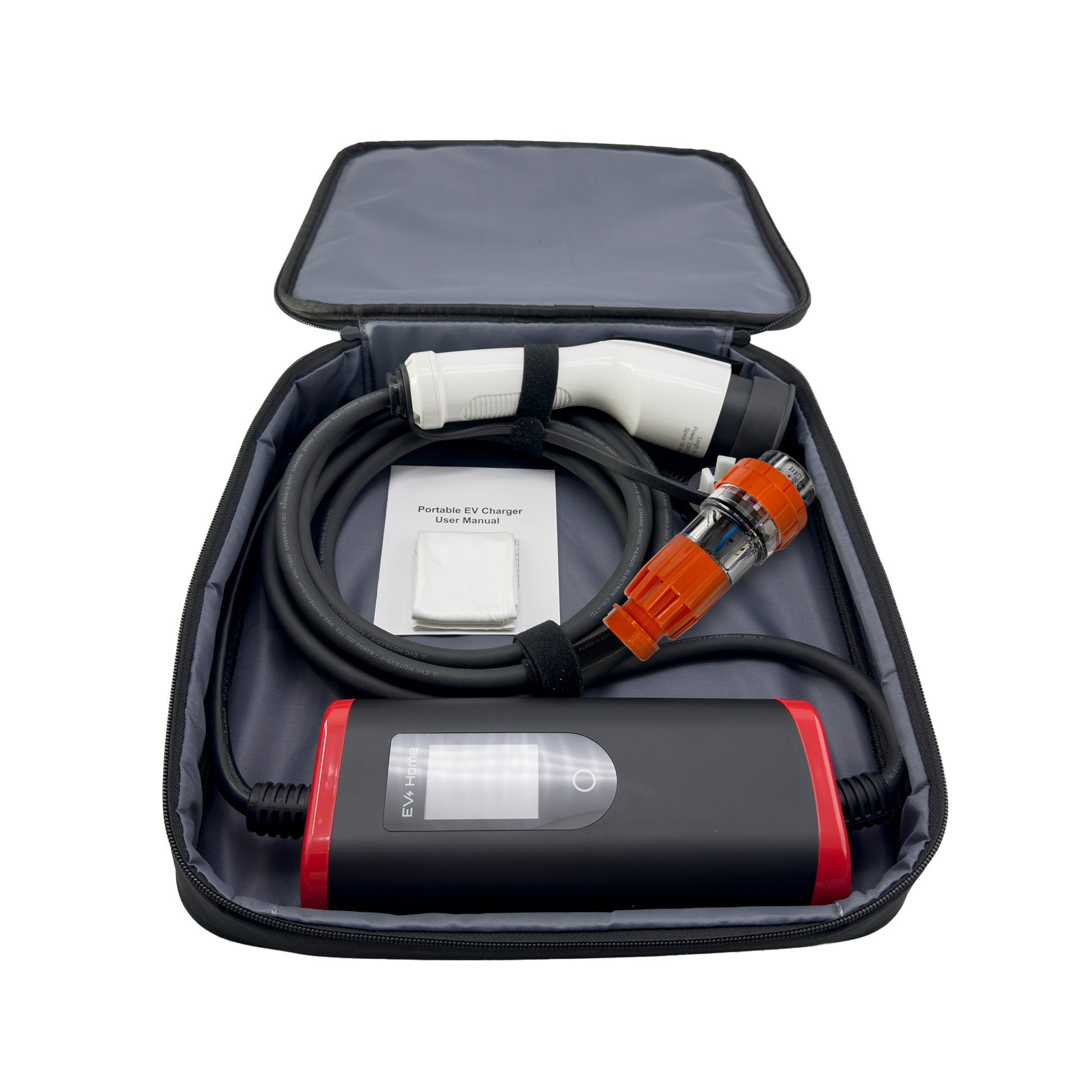

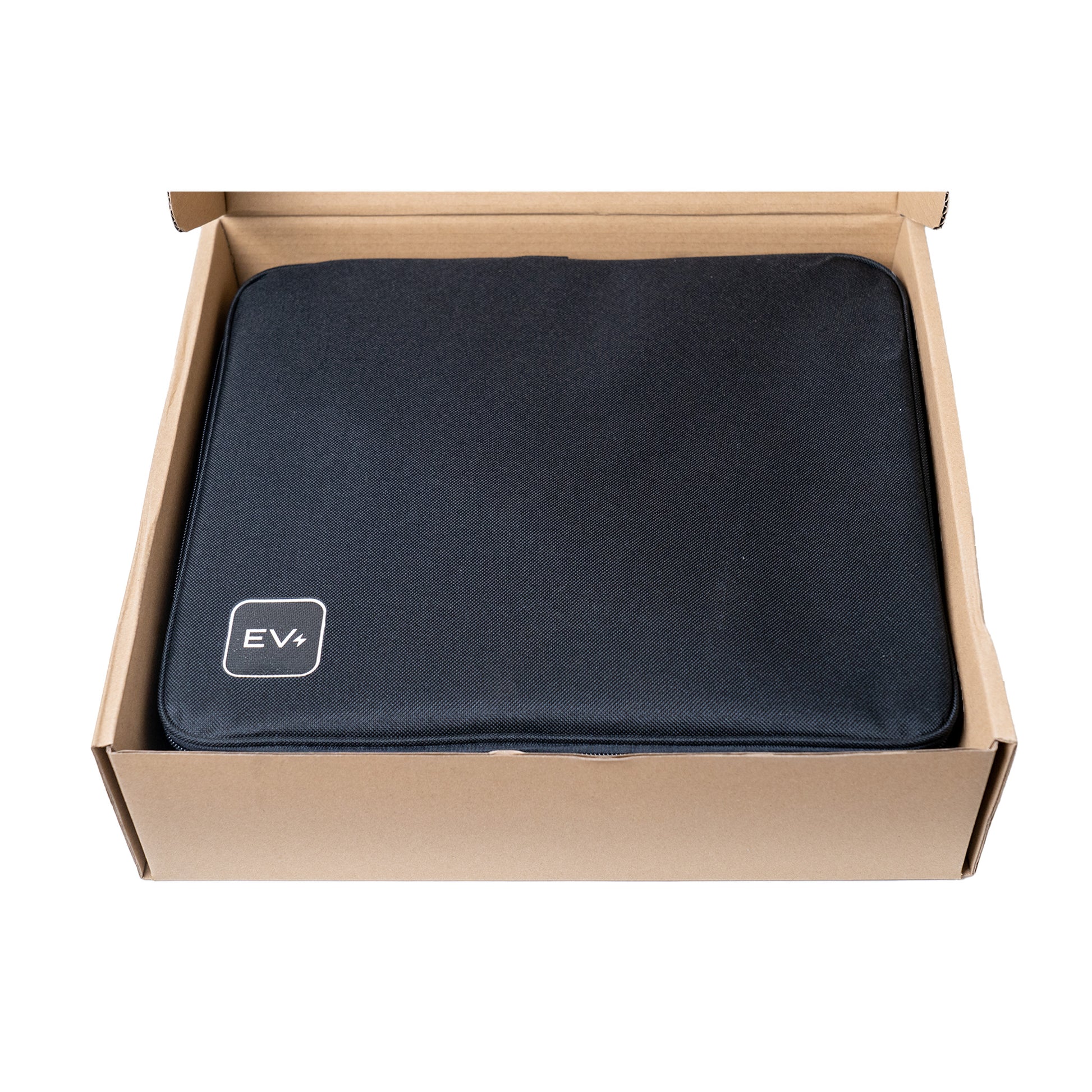

- Comes with a deluxe packing bag (Oxford cloth with zipper/handle) View the Product
- Maximum Power: 7kW (32A Single Phase)

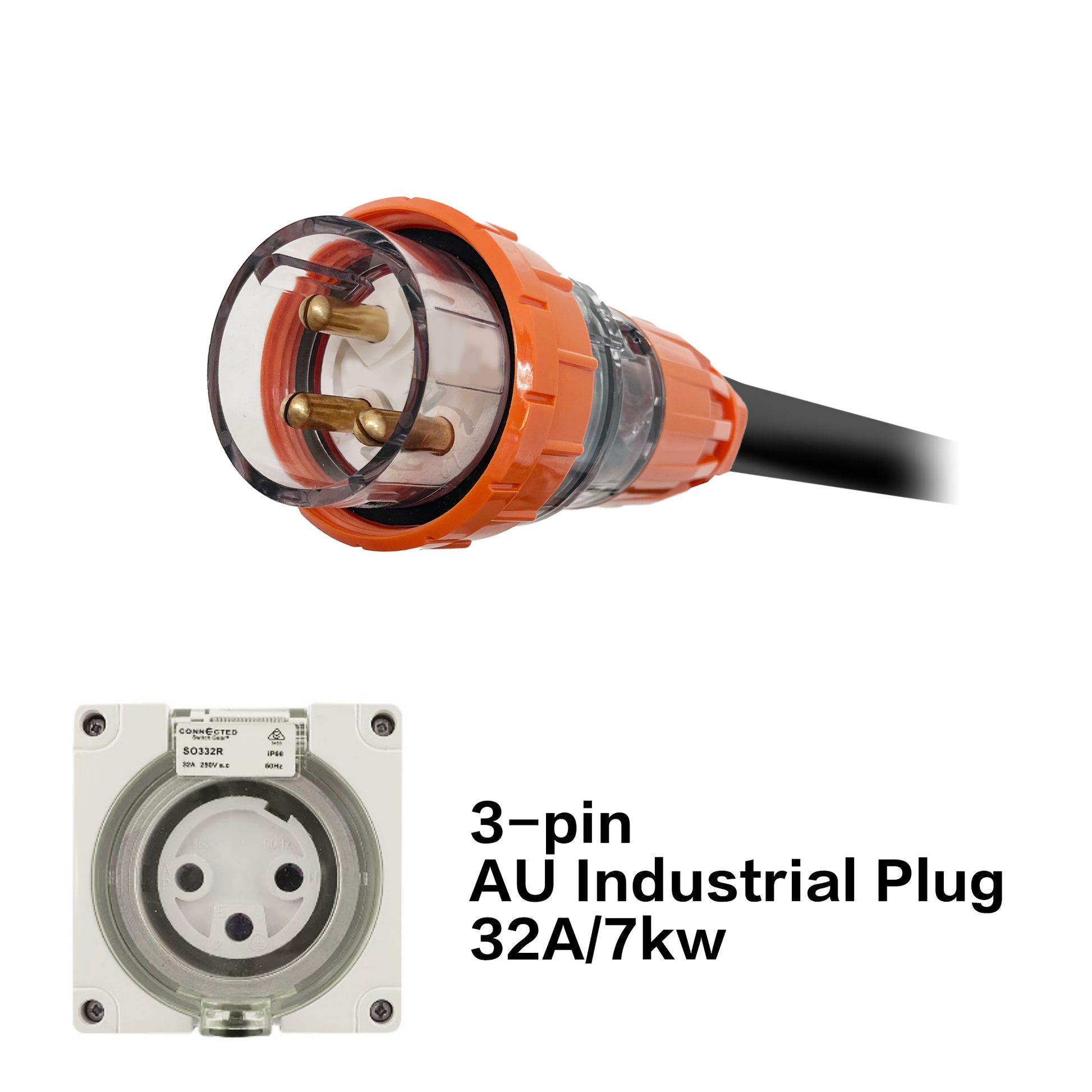

- Power Plug: AU-standard industrial 3-pin

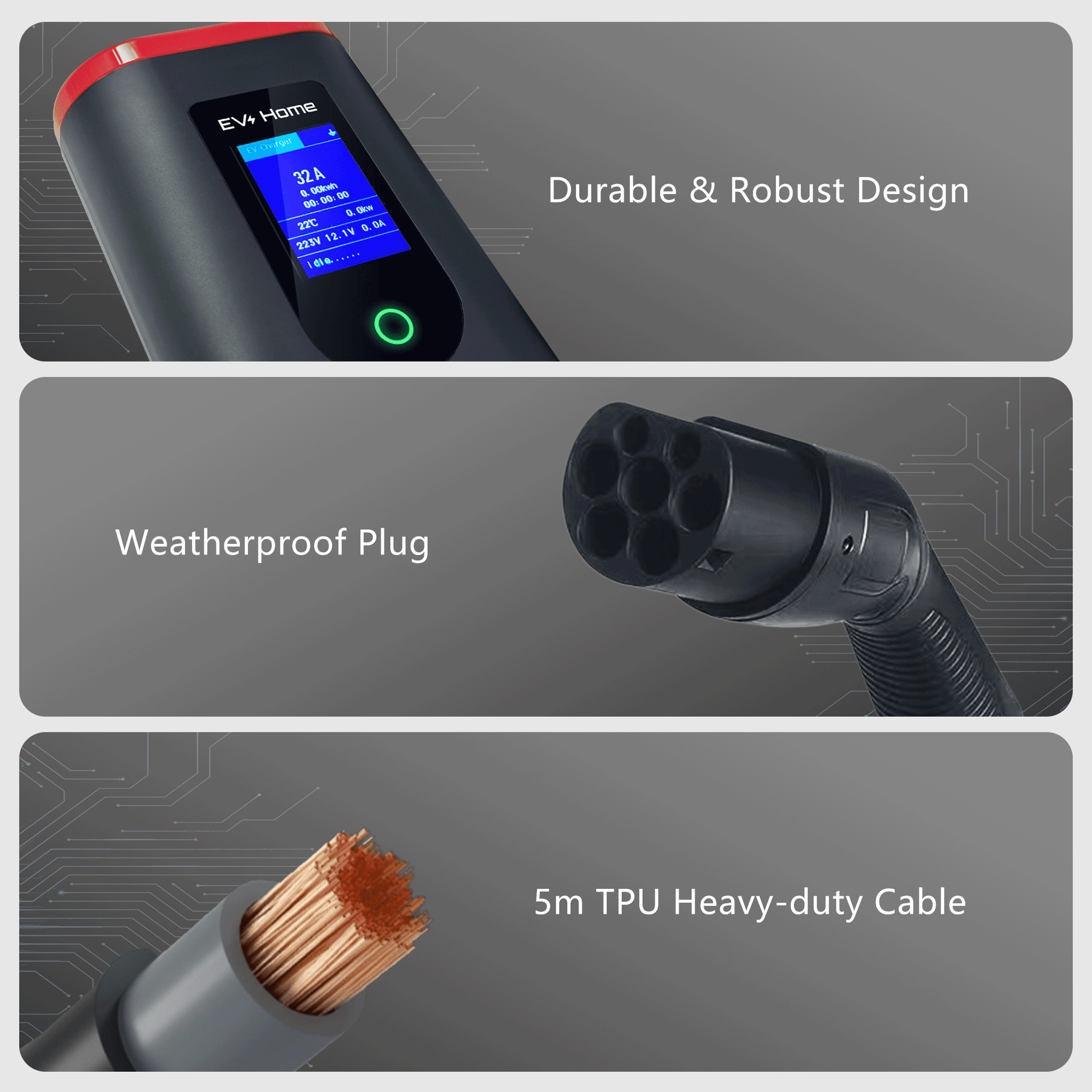

- 5-meter premium lightweight heavy-duty cable
- 2.4'' LCD screen display & LED indicator (R/G/B)
- Dustproof cap made of silicon, attached to the tail

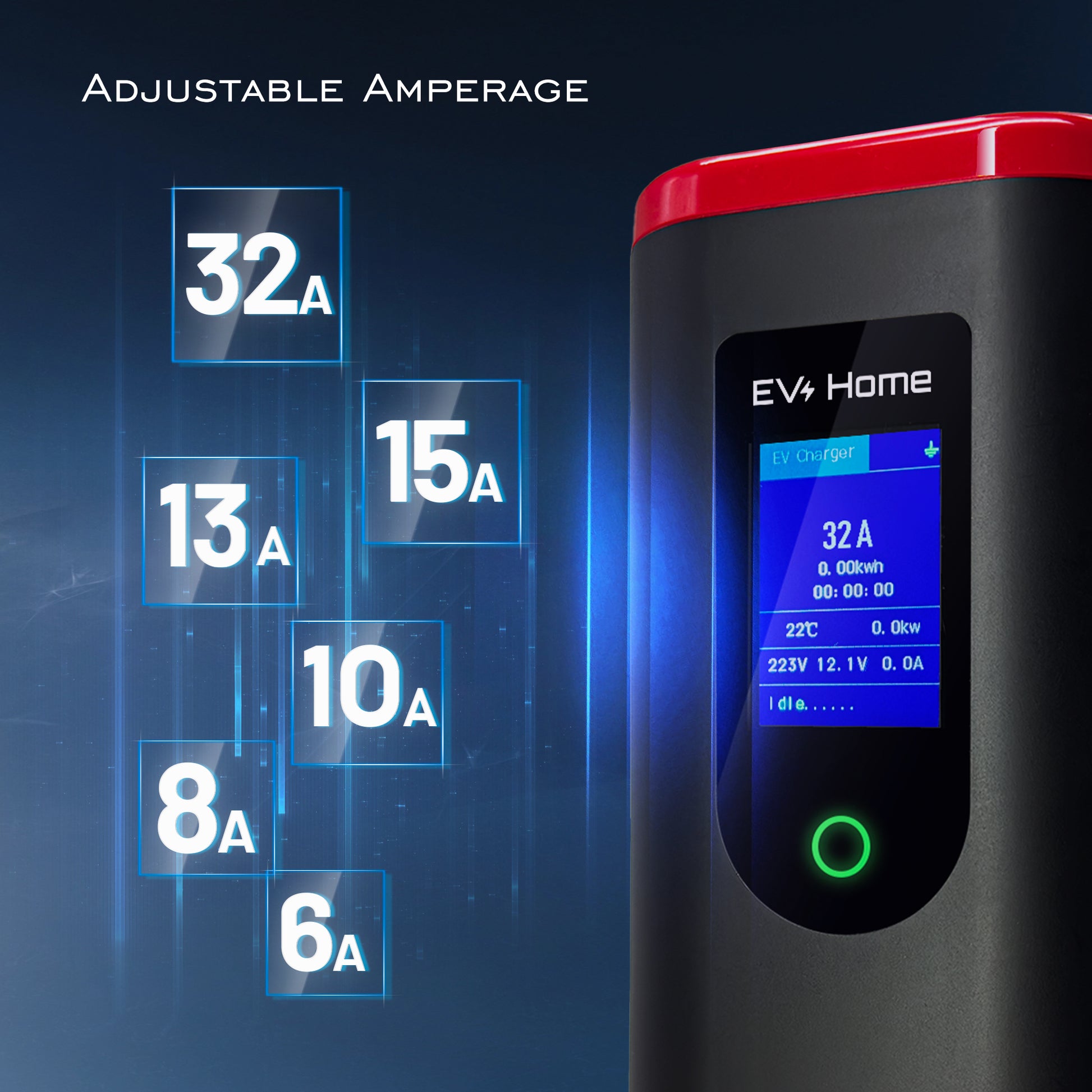

- Functions: Current selection (6A/8A/10A/13A/15A/32A) ; Time-book
- Protection: IP65 weatherproof; Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage protection, O/U frequency protection, Over temp protection
- Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, MG, Mini, Mitsubishi, Nissan 2018+, Polestar, Renault, Rivian, TESLA, Toyota, Volkswagen, Volvo, and more.
For a comprehensive guide to finding the best accessories for your EV, check out our blog: Essential Gadgets for EV Owners in Australia.
Technical Details
Charging Plug | Type 2 |
---|---|

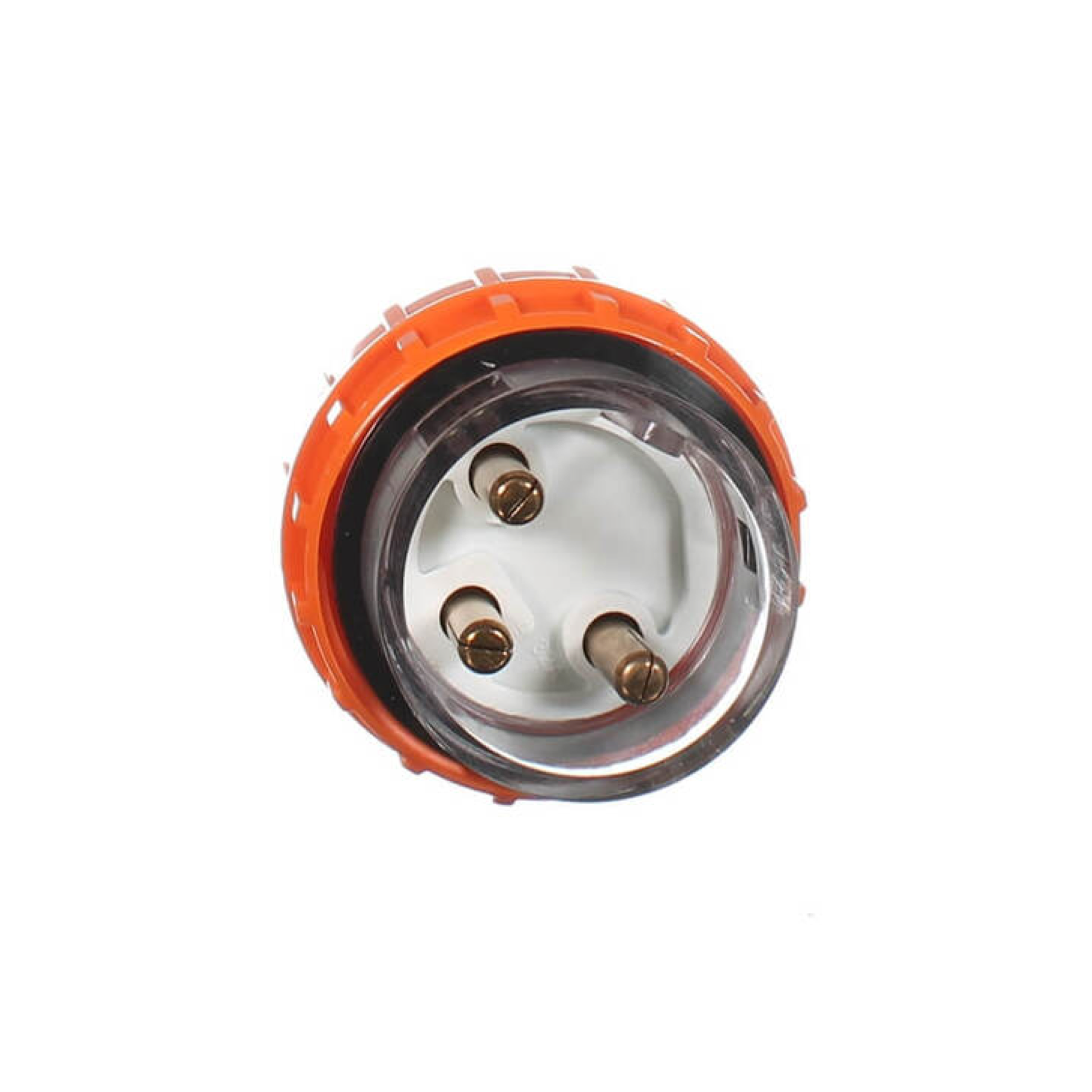

Power Plug | 3-pin 32Amp AU Industrial Plug |
Maximum Charging Power | 7.3kw |
Item Weight | 3.5kg |
Dimension | L220*W100*H60mm (Control Box) |
Cable Length | 5m |
Operating Temperature | -35 ° C to 50 ° C |
Item Color | Red & Black |
Length | 5m |
Certificates | ICCB, TUV, CE, UKCA, RoHS |
Warranty | 2 Years |
Which is the Best for You?
EZ Charge Series Comparison
Specifications | EZ Charge | EZ Charge Pro | EZ Charge Max | |
---|---|---|---|---|
Specifications | Maximum Power | 3.5kw | 7kw | 22kw |
Power Plug | 15A AU Plug | 32A Single Phase 3-Pin AU Industrial Plug |
32A 3 Phase 5-Pin AU Industrial Plug |
|
Charging Plug | Type 2 | Type 2 | Type 2 | |
Cable | 5m Heavy-duty TPU Cable | 5m Heavy-duty TPU Cable | 5m Heavy-duty TPU Cable | |
Weight | 2.6kg | 3.6kg | 4kg | |
Operating Temperature | -35°C to 50°C | -35°C to 50°C | -35°C to 50°C | |
Warranty | 2-Year | 2-Year | 2-Year | |
Certifications | ICCB, TÜV, CE, UKCA, RoHS | ICCB, TÜV, CE, UKCA, RoHS | ICCB, TÜV, CE, UKCA, RoHS | |
Features | Adjustable Amperage | 6A/8A/10A/15A | 6A/8A/10A/15A/32A | 6A/8A/10A/15A/32A |
On-time Display | ✔ (2.4" LCD Screen) | ✔ (2.4" LCD Screen) | ✔ (2.4" LCD Screen) | |
Delay Charging | ✔ | ✔ | ✔ | |
Remote Control | ||||
Automatic Amperage Recognition & Switch | ||||
Delux Storage Bag | ✔ | ✔ | ✔ | |
Weather Proof | IP65 | IP65 | IP65 | |
Ground Protection | ✔ | ✔ | ✔ | |
Leakage Current Protection | ✔ | ✔ | ✔ | |
Over Current Protection | ✔ | ✔ | ✔ | |
Surge Protection | ✔ | ✔ | ✔ | |
O/U Voltage Protection | ✔ | ✔ | ✔ | |
O/U Frequency Protection | ✔ | ✔ | ✔ | |
Over Temp Protection | ✔ | ✔ | ✔ | |
Impact Resistance | ✔ | ✔ | ✔ |
FAQs
What is the charging speed for each model of EZ Charge Series (3.5kW, 7kW, 22kW)?
Our portable EV charger lineup offers varying charging speeds, demonstrated with a Tesla Model 3 Standard Range (60kWh battery) as reference:
- EZ Charge (3.5kW): ~17 hours full charge | Requires 15A single phase outlet
- EZ Charge Pro (7kW): ~8.5 hours full charge | Requires 32A single phase outlet
- EZ Charge Max Fast Portable Charger (22kW): ~2.7 hours full charge | Requires 32A three phase outlet
Choose the mobile EV charger that best matches your electrical infrastructure and charging time preferences. Actual charging times may vary based on your vehicle's battery capacity and onboard charger limitations.
Do I need any special electrical outlets to use these chargers?
Each EZ Charge portable EV charger requires a specific Australian industrial wall socket:
- EZ Charge (3.5kW): Standard 15A AU plug (single phase)
- EZ Charge Pro (7kW): 32A 3-Pin AU industrial plug (single phase)
- EZ Charge Max (22kW): 32A 5-Pin AU industrial plug (three phase)
Ensure your outlet matches your charger's plug type and rating. For 32A models, we recommend a dedicated circuit installed by a licensed electrician for safety and optimal performance.
Can I use these portable EV chargers outdoors?
Yes, all models in the EZ Charge series boast an IP65 weatherproof rating plugs, making them suitable for safe outdoor use in various weather conditions. This rating ensures protection against dust and water ingress, allowing you to charge your EV conveniently, whether indoors or outdoors.
Can I adjust the charging current on these EV portable chargers?
Yes, all EZ Charge portable EV chargers offer adjustable charging current settings to match your power supply conditions:
- EZ Charge (3.5kW): Adjustable to 6A, 8A, 10A, or 15A
- EZ Charge Pro (7kW): Adjustable to 6A, 8A, 10A, 15A, or 32A
- EZ Charge Max (22kW): Adjustable to 6A, 8A, 10A, 15A, or 32A
This flexibility allows you to safely charge from outlets with varying current ratings or adjust charging speed based on your needs.
Do I need extra charging cable for these EV portable chargers?
No, all EZ Charge Series models include a 5m heavy-duty TPU charging cable. However, for commercial charging stations, consider our additional options:
- Type 2 to Type 2 EV Charging Cable | 7kW 32A 1Phase
- Type 2 to Type 2 EV Charging Cable | 22kW 32A 3Phase
These specialized cables allow you to connect your vehicle at public charging infrastructure when needed.
Do these EV portable chargers can monitor the real-time charging information?

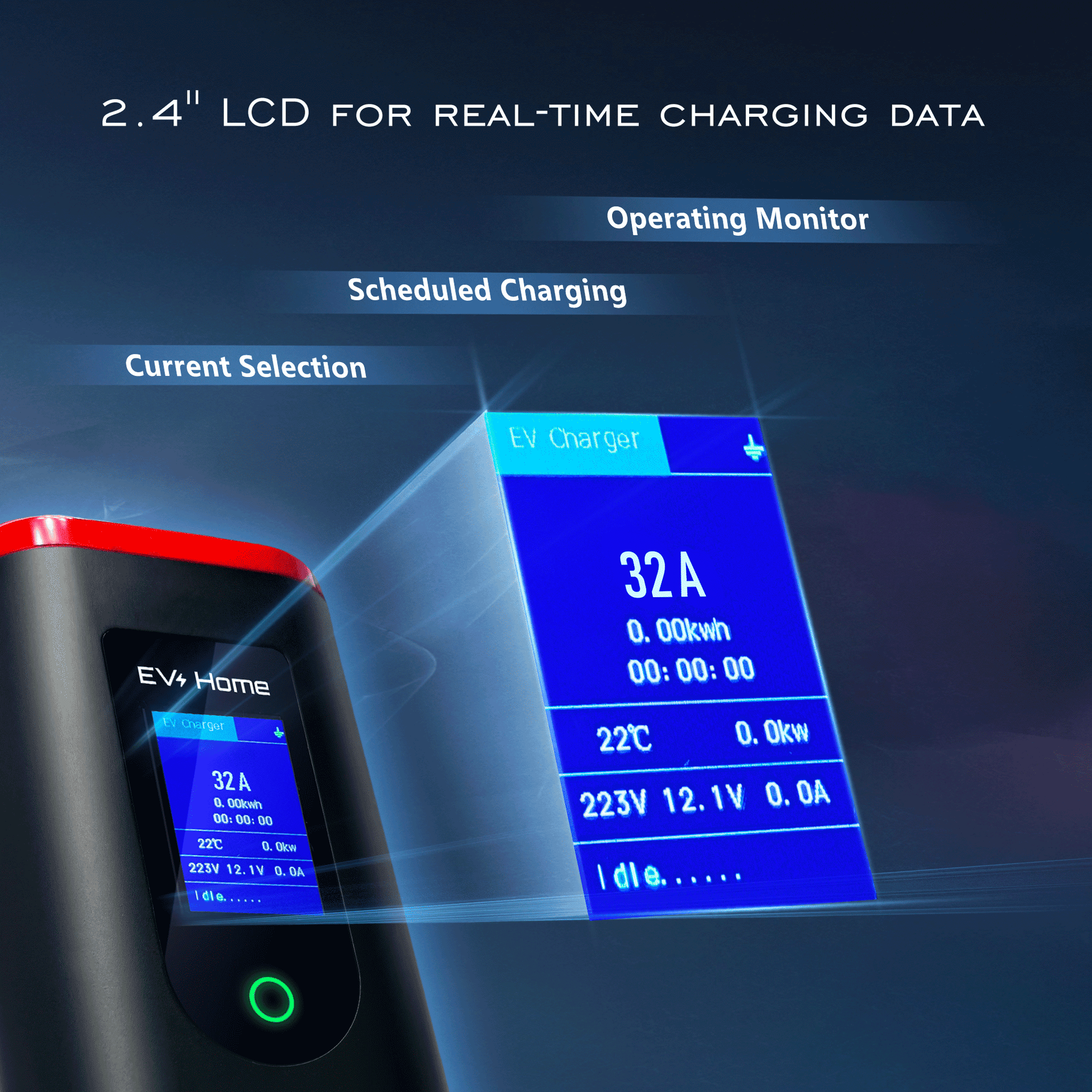

Yes, the EZ Charge, EZ Charge Pro, and EZ Charge Max models all feature a clear 2.4'' LCD screen that provides users with real-time charging data, including voltage, current, temperature, and charging time. This allows for easy monitoring of the charging progress and ensures you have all the necessary information at a glance.
What is the warranty period for the EZ Charge Series?
EvsHome stands behind the quality of the EZ Charge series, offering a standard 2-year warranty on all EV chargers & Cables. This warranty covers defects in materials and workmanship under normal use, providing peace of mind for your purchase.
Do these EV portable chargers have interchangeable plugs?
No, EZ Charge Series models do not feature interchangeable plugs. For portable EV chargers with interchangeable plug options, please explore our Flex Series instead.
